General technical data:

Luminaire type:

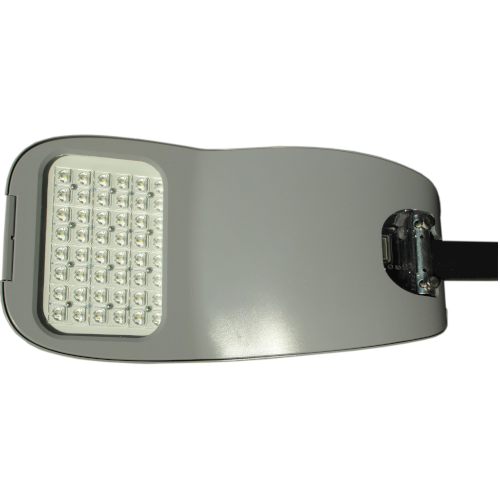

· LED surface-mounted and post-top light
· Mast height (MH): up to 10 m
· Collector roads
· Main roads
· Parking spaces
· Crossing areas
Possible mast spacings on one side:
· ME5: 50 m at a mast height of 8.5 m
· S5: 65 m at a mast height of 8.5 m

Product Specifications:

Luminous flux: 8400 lm - 1550 lm ±% 10 - manually adjustable
System power: 60W - 12W
LED current / mode of operation: 500mA – 80mA / constant current
Light color / color temperatures * C: Neutral white / 4000 K
Color rendering: CRI> 70
System efficiency: up to 130 lm / W
Optical system: PMMA lens optics — °asymmetrical
Specified service life: 100,000 hours at 25 °
Operating temperature range: -40 ° - +50 ° C
Type of protection, protection class: IP 66, PC I or II
Light management:
· Two-phase half-night switching (basic and reduced brightness can be set manually)
· Optional auto dimmer, (self-sufficient factory programmed)
Manufacturer's guarantee for the entire system: See service model 5 years, optionally 10 years
Mains voltage: 220 ~ 240 Vac / 50 ~ 60 Hz
Certificates: ENEC 05, CE, VDE (pending)

Mechanical parameters:

Dimensions (LxWxH): 599x295x134 mm
Housing: die-cast aluminum
Surface: powder coating in RAL 9006 or RAL 7024 *
Weight: 6.5 kg
Impact resistance (IK): IK08, 4 mm safety glass

System performance

System performance 100%	Luminous flux	System performance 70%	Luminous flux	System performance 50%	Luminous flux
60 W	8400 lm	43 W	5900 lm	31 W	4150 lm
53.5 W	7500 lm	38,5 W	5250 lm	27,5 W	3700 lm
48 W	6650 lm	43,5 W	4700 lm	25 W	3300 lm
43 W	5900 lm	31 W	4150 lm	22,5 W	2950 lm
38.5 W	5250 lm	27,5 W	3700 lm	20 W	2650 lm
34,5 W	4700 lm	25 W	3300 lm	18 W	2350 lm
31 W	4150 lm	22.5 W	2950 lm	12 W	2150 lm
27,5 W	3700 lm	20,0 W	2650 lm	14,5 W	1900 lm
25 W	3300 lm	18 W	2350 lm	13,5 W	1750 lm
22,5 W	2950 lm	16,5 W	2150 lm	12 W	1550 lm
20 W	2650 lm	14,5 W	1900 lm
18 W	2350 lm	13,5 W	1750 lm
16,5 W	2150 lm	12 W	1550 lm
14,5 W	1900 lm
13,5 W	1750 lm
12,0 W	1550 lm

---

Lighting data:

Different optical modules are available for the street lights to ensure optimal light distribution.
Here are typical street looks. Other optics possible for extended requirements!

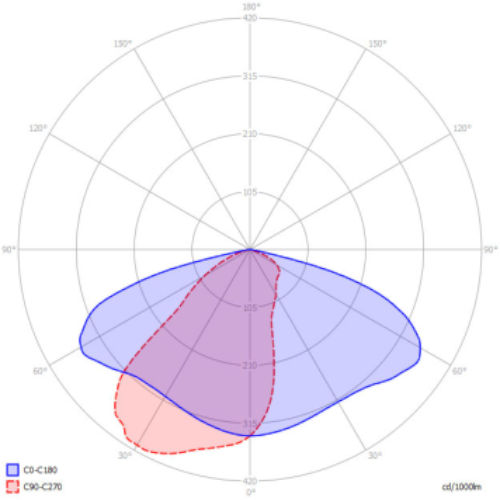

Light distribution V1 - default

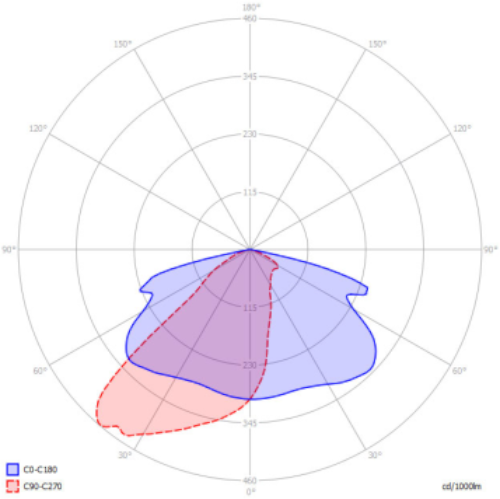

Light distribution V2

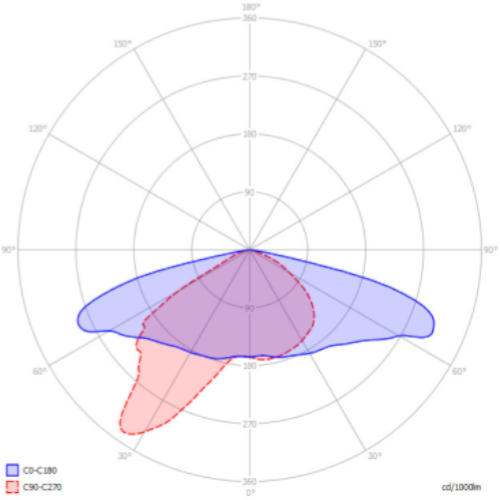

Light distribution V3

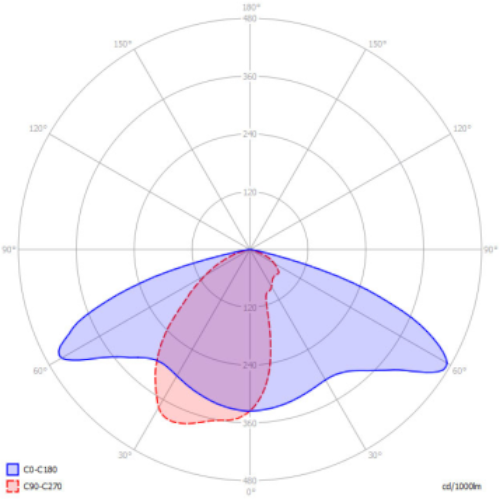

Light distribution V4

Light distribution V5

---

Service model:

· Defective lights will be taken back within the guarantee period and exchanged for a replacement light of the same type and age.

· Replacement lights are provided for orders of 50 or more and are included in the scope of delivery. These lights are only intended to replace defective lights.

If all replacement lights are installed, the defective lights will be sent back to Friedhelm Trapp GmbH. In return, the cu In return, the customer receives the same number of replacement lights during the warranty period.
